The King of Cost Performance New BYD Pure Electric 8x4 Slag Truck Engineering Special Purpose

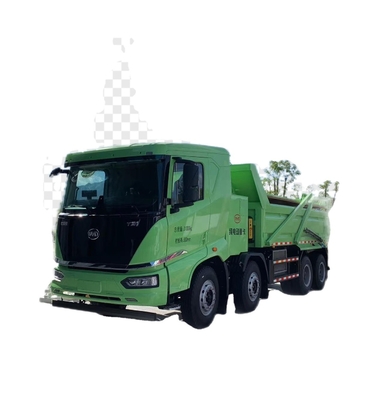

Large Image : The King of Cost Performance New BYD Pure Electric 8x4 Slag Truck Engineering Special Purpose

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	BYD

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	$185,000.00/pieces 3-4 pieces
Packaging Details:	Customizable packaging
Supply Ability:	120 Piece/Pieces per Month

Contact Now

The King of Cost Performance New BYD Pure Electric 8x4 Slag Truck Engineering Special Purpose

Description

Condition:	New	Steering:	Left
Horsepower:	451 - 500hp	Emission Standard:	Euro 6
Segement:	Heavy Truck	Market Segement:	Urban Construction Muck Transportation
Fuel Type:	Electric	Engine Capacity:	< 4L
Gear Box Brand:	FAST	Transmission Type:	Automatic
Forward Shift Number:	12	Reverse Shift Number:	1
Maximum Torque(Nm):	≥2500Nm	Dimensions (L X W X H) (mm):	964025503320
Cargo Tank Dimension:	560023001200	Cargo Tank Length:	5.3-6.2M
Gross Vehicle Weight:	≥30T	Capacity (Load):	> 50T
Fuel Tank Capacity:	≤100L	Drive Wheel:	8X4
Passengers:	2	Driver's Seat:	Normal
Rear Camera:	Camera	Cruise Control:	Normal
ABS(Antilock Braking System):	Yes	ESC(Electronic Stability Control System):	Yes
Touch Screen:	Yes	Multimedia System:	Yes
Window:	Automatic	Air Conditioner:	Automatic
Tire Number:	12	After-sales Service Provided:	Video Technical Support, Overseas Call Centers, Online Support
Battery Capacity:	422 KWH	Battery Brand:	BYD Lithium Iron Phosphate Battery
Product Name:	8x4 Dump Truck	Engine:	390KW
Charging Power:	DC120x2	BATTERY TYPE:	Lithium Iron Phosphate
Port:	XinJiang,ShangHai,nNingBo
Highlight:	New BYD Slag Truck , 8x4 BYD Slag Truck

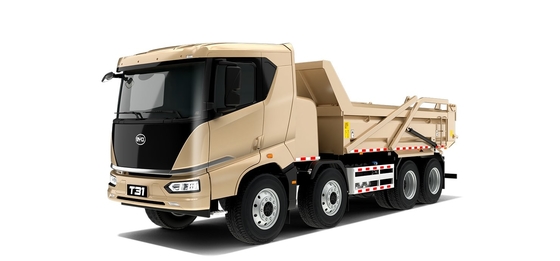

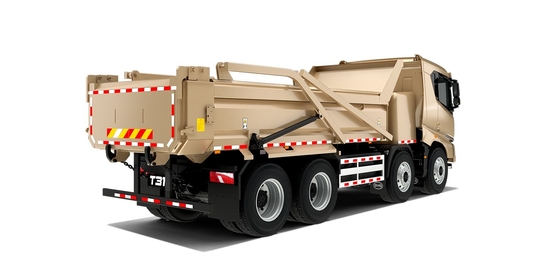

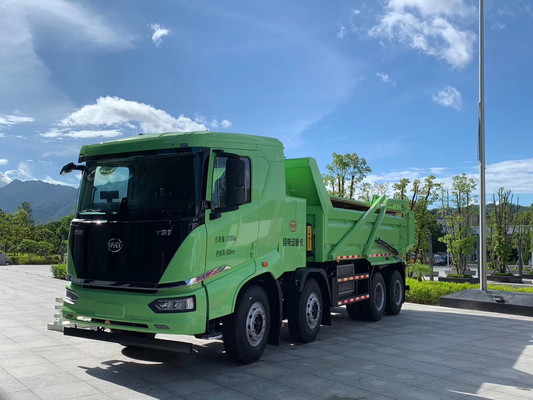

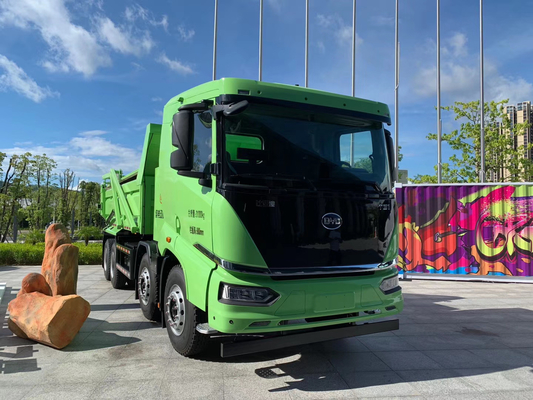

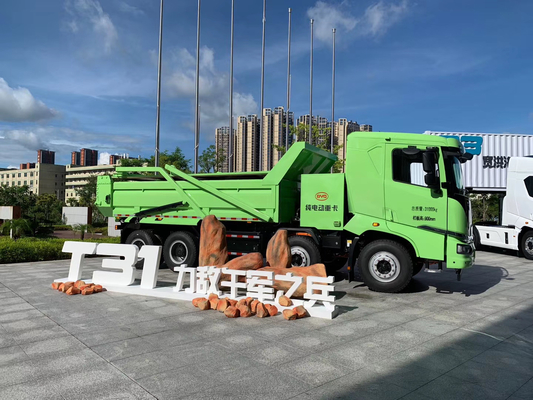

Details Images

basic parameters	unit
Length * width * height	mm	964025503320
wheelbase	mm	1850+3200+1350
Total mass	Kg	31000
curb weight	Kg	11700
Driving form		8x4
maximum speed	km/h	85
Max Gradeability	%	50
Motor peak power	kW	390
BATTERY TYPE		Lithium Iron Phosphate
battery level	kWh	355/444
CWTVC working condition comprehensive mileage	km	190/260
charging power	kW	DC120x2
charging time	h	＜2

BYD Introduction

BYD is a high-tech enterprise that spans four major industries: electronics, automobiles, new energy, and rail transit, and is listed in both Hong Kong and Shenzhen. We always adhere to the development concept of "technology is the king, innovation is the foundation", and the brand mission of "using technology innovation to meet people's aspirations for a better life". From energy acquisition, storage, to application, we will comprehensively build a zero emission new energy overall solution. Technology changes life, using innovative technology to achieve the green dream of all humanity, adhering to a high sense of social responsibility, leading the transformation and upgrading of Chinese manufacturing, and building a world-class industrial brand in China.

Electronics field

BYD is a leading global provider of intelligent product solutions, and its electronic business currently includes three major areas: smartphones and laptops, automotive intelligent systems, and new intelligent products. BYD Electronic is the only company in the world that can provide a full range of structural parts and complete machine design and manufacturing solutions such as precision metal, glass, ceramics and plastics on a large scale. By virtue of rich international cooperation experience, excellent product and service quality, strong material research and development capabilities, and industry-leading precision manufacturing capabilities, it provides global top smart product customers with comprehensive research and development, design, manufacturing, supply chain management, etc One stop service.

Automotive sector

BYD is currently the only car company in the world that simultaneously possesses core technologies such as new energy vehicle batteries, motors, electronic control and charging accessories, and the entire vehicle. Since the launch of the world's first mass production plug-in hybrid model in 2008, BYD has relied on its strong technical strength and continued innovation. At present, it has formed three product series of passenger cars, commercial vehicles and forklifts, covering seven conventional fields of private cars, taxis, urban public transport, road passenger transport, urban commodity logistics, urban construction logistics, sanitation vehicles, and four special fields of storage, ports, airports, and mining vehicles, Achieve full domain coverage. With excellent product quality and innovative operation mode, BYD's new energy vehicles have gained widespread recognition from domestic and foreign customers, with footprints covering six continents, more than 50 countries and regions worldwide, and a total of over 300 cities.

New energy sector

BYD is the world's leading provider of solar energy and energy storage solutions. It has 100% ability to independently develop, design and produce solar cells, consumer 3C batteries, power batteries, energy storage batteries and other products, and can provide a whole set of new energy solutions from power generation - power storage - power consumption - Battery recycling. BYD is also the first new energy enterprise in the world to be awarded the "United Nations Special Energy Award" by the United Nations.

The field of rail transit

In order to solve the problem of urban traffic congestion, BYD has spent 5 years developing the medium capacity straddle type monorail "cloud rail" and 7 years developing the small capacity rubber wheeled tram "cloud bus". Both are equipped with unmanned driving systems, multi-functional and deeply integrated comprehensive scheduling systems, facial recognition and other high-tech configurations, which have advantages such as high safety, high intelligence, high adaptability, high appearance, low construction cost, and short construction period. They can provide passengers with a more intelligent and convenient travel experience, and help upgrade urban transportation. And was invited to appear at the 2019 Spring Festival Gala, showcasing China's technological achievements and the development trend of "future cities" to the world.

BYD Commercial Vehicle

With the vision of "creating first-class brands and products", we aim to revitalize the national automotive industry. Adhering to the principle of "green achievements for a better life" and adhering to the enterprise development philosophy of "technology as the king and innovation as the foundation", we continue to lead the global transformation of the new energy commercial vehicle industry. Currently, BYD's commercial vehicle products cover K9, K8, K7, K6, and K8S All series of pure electric buses, C8, C7, C6 and other pure electric passenger buses, T4, T5, T6, T7 and other pure electric logistics trucks, as well as pure electric sanitation vehicles (chassis), Dump truck, Concrete mixer, special vehicles and other models. Since its launch in 2010, BYD commercial vehicle products have been widely used in many domestic cities such as Beijing, Shenzhen, Guangzhou, Shanghai, Nanjing, Hangzhou, Dalian, Wuhan, Xi'an, Changsha, etc., covering more than 50 countries and regions worldwide, including Europe, the United States, Japan, and South Korea, and over 300 cities, achieving a global layout on six continents. The maximum driving range of BYD pure electric buses per vehicle has exceeded 590000 kilometers, setting a global record for the highest driving range of pure electric buses. Adhering to the green dream, BYD Commercial Vehicles is continuously expanding its new energy landscape with globally leading new energy technology, illuminating more green, ecological, and civilized cities around the world. In the future, BYD commercial vehicles will seize historic opportunities, meet people's aspirations for a better life with technological innovation, continue to lead the development of new energy commercial vehicle technology and market, and create a globally competitive leading brand of world-class new energy commercial vehicles.

Battery Safety

Battery Safety: BYD has the research and development capability to penetrate the entire industry chain from raw materials to battery packs, making it the first enterprise in the world to pass safety certifications for QC/T743, UL1642, and UL2580; The BYD power battery has undergone extreme tests such as "burning, short circuit, puncture, impact, high temperature, compression, overcharging", greatly ensuring the safety of battery use. High voltage safety: BYD's self-developed multi in one controller, with a waterproof level of IP68, has multiple safety protection measures such as leakage detection, overcurrent protection, high-voltage interlocking, active and passive discharge, and relay sintering detection, ensuring the high voltage safety of the entire vehicle. Charging safety: Equipped with four layers of protection: main control, auxiliary control, VTOG for battery overcurrent/over temperature protection, and charging port over temperature protection. Structural safety: It has the first high-strength cage body in China that has passed the European Standard R29 collision certification, with excellent safety performance. Battery thermal management system: Equipped as standard with a liquid cooled battery thermal management system, temperature control is more precise, fully ensuring the efficient and stable operation of vehicles in various climatic conditions.

Commercial Vehicle Research Institute

After ten years of development, BYD has established a Commercial Vehicle Research Institute on the basis of the original Bus Research Institute and Truck Research Institute, dedicated to the research and development of the entire vehicle and chassis of pure electric buses and trucks. It integrates design, trial production, and testing, and has rich experience in vehicle research and development. The R&D models cover urban public transport, road passenger transport, urban logistics, environmental sanitation, ports, airports, mines and other fields, covering all pure electric buses and trucks. We have won numerous honors such as the first prize of the 2017 "China Automotive Industry Science and Technology Progress Award", the 2018 "Best Selling" electric heavy-duty truck, and the 2020 German iF Design Award "Discipline Product Award". Under the company's brand mission of "satisfying people's longing for a better life with technological innovation", we are constantly moving forward!

organization structure

The Commercial Vehicle Research Institute currently has over 2000 R&D and trial production personnel, and has established technical R&D departments such as technology centers, passenger car R&D centers, and truck R&D centers. It has independently established a comprehensive product development process system and possesses comprehensive R&D capabilities such as design, analysis, testing, and verification, as well as rich experience in vehicle R&D.

R&D strength

The Commercial Vehicle Research Institute has invested tremendous energy in technical research and project research and development, and has core technologies in electric drive system, battery and management system, aluminum alloy body, etc., forming a core technology Patent pool for pure electric buses and trucks. At the same time, it has comprehensive simulation analysis capabilities such as strength and stiffness analysis, fluid analysis, dynamics analysis, topology design analysis, collision analysis, Big data analysis, and comprehensively controls all aspects of product performance.

Technology

High safety standardized battery pack; 2. The industry's first power battery thermal management system; 3. The world's first passenger car wheel drive system; 4. IGBT 4.0 technology; 5. Taking the lead in large-scale application of all aluminum alloy body; 6. Leading the trend of integrated, standardized, and modular design; 7. Pioneering bidirectional inverter charging and discharging technology; 8. A comprehensive commercial vehicle inspection system; 9. Leading electric integrated bridge assembly technology; 10. Comprehensive safety protection

Rich market experience

With its strong technical strength, excellent product quality, and innovative operating model, BYD has delivered a total of 65000 pure electric buses, 13000 trucks, and specialized vehicles to its global partners. Its operating footprint has spread to over 50 countries and more than 300 cities worldwide, achieving a strategic layout on six continents. BYD commercial vehicles have been widely used in many domestic cities such as Beijing, Shenzhen, Guangzhou, Shanghai, Xi'an, Changsha, Nanjing, Hangzhou, Dalian, and have successfully entered the markets of the four developed regions of Europe, America, Japan, and South Korea, becoming the only Chinese new energy bus enterprise that fully covers the four developed regions of the world.

JiaWang Info

Shanghai Jiawang New Energy Vehicle Trading Co., Ltd. is a trading company specializing in new energy passenger vehicles, commercial vehicles, mechanical equipment, charging piles, and energy storage equipment. We have the most cost-effective vehicles, are very familiar with the application scenarios of new energy vehicles, and can provide supporting services and professional spare parts related to new energy vehicles.

FAQ:

1,Who are we? Shanghai Jiawang New Energy Vehicle Trading Co., Ltd. is a trading company specializing in new energy passenger vehicles, commercial vehicles, mechanical equipment, charging piles, and energy storage equipment 2,Why did you choose us? We have the most cost-effective vehicles, are very familiar with the application scenarios of new energy vehicles, and can provide supporting services and professional spare parts related to new energy vehicles 3,How do we ensure quality? Always pre produce samples before mass production; Always conduct a final inspection before shipment; 4,Why should you purchase from us instead of from other suppliers? Deep cooperation with manufacturing factories can achieve customized production according to customer requirements. As an authorized BYD distributor, the company can provide high-end products and services to Chinese and global customers.

5,Contact Us

1,Accepted delivery terms: FOB price; 2,Accepted payment methods: USD, EUR, JPY, CAD, AUD, HKD, GBP, RMB, CHF; 3,Accepted payment methods: telegraphic transfer, letter of credit, cash, custody; 4,Language: English, Chinese
